Standard Thread Mini Filter/Regulator - Global FRL - P31
Details
Details

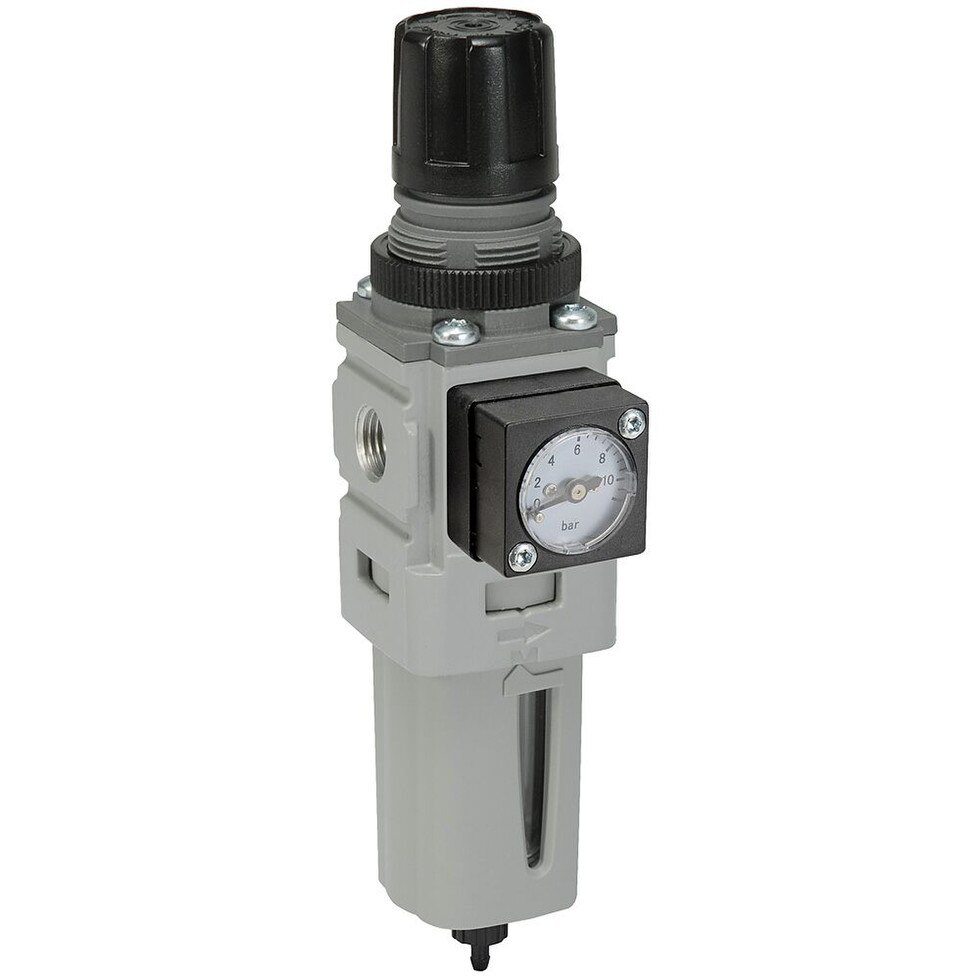

Parker's P31E is a mini particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. P31E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With a balanced poppet design and a 5 micron filter element this filter/regulator delivers quick response, accurate pressure regulation and a high rate of particulate removal. For low flow and space restricted applications this product can provide a solution that does not sacrifice performance. The P31E can also be mounted using a modular connector to other P31 global air preparation product. The various options available such as auto drain, manual drain, gauge, assortment of bowl/drain options, pressure range and preset pressures make this series easy to design to your application.
• Global modular mini filter/regulator
• Element: 5 micron
• Port Size: 1/4"
• Gauge Port Size: 1/8"
• Relieving|Non-Relieving
• Drain Type: Pulse|Manual
• Thread Type: BSPP|BSPT|NPT
• Maximum Supply Pressure (psi): 150 (plastic bowl)|250 (metal bowl)
• Maximum Supply Pressure (bar): 10 (plastic bowl)|17 (metal bowl)
• Operating Temperature (F): 14° to 125° (plastic bowl)|14° to 150° (metal bowl)
• Operating Temperature (C): -10° to 52° (plastic bowl)|-10° to 65.5° (metal bowl)
• Preset Pressure Option: No
• Pressure Range (psig): 0 to 30|0 to 60|0 to 125|0 to 232
• Pressure Range (bar): 0 to 2|0 to 4|0 to 8|0 to 16
• Mounting: Plastic panel mount nut
• Flow Capacity: 22 SCFM
• Body and Adjustment Knob Material: Aluminum|Acetal
• Bowl Material: Polycarbonate|Aluminum
• Filter Element: Polyethylene
• Seals: Nitrile
• Weight: 0.42lbs or 0.19kg
