Metric Thread Standard Coalescing & Adsorber Filter - Global FRL - P33
Details
Details

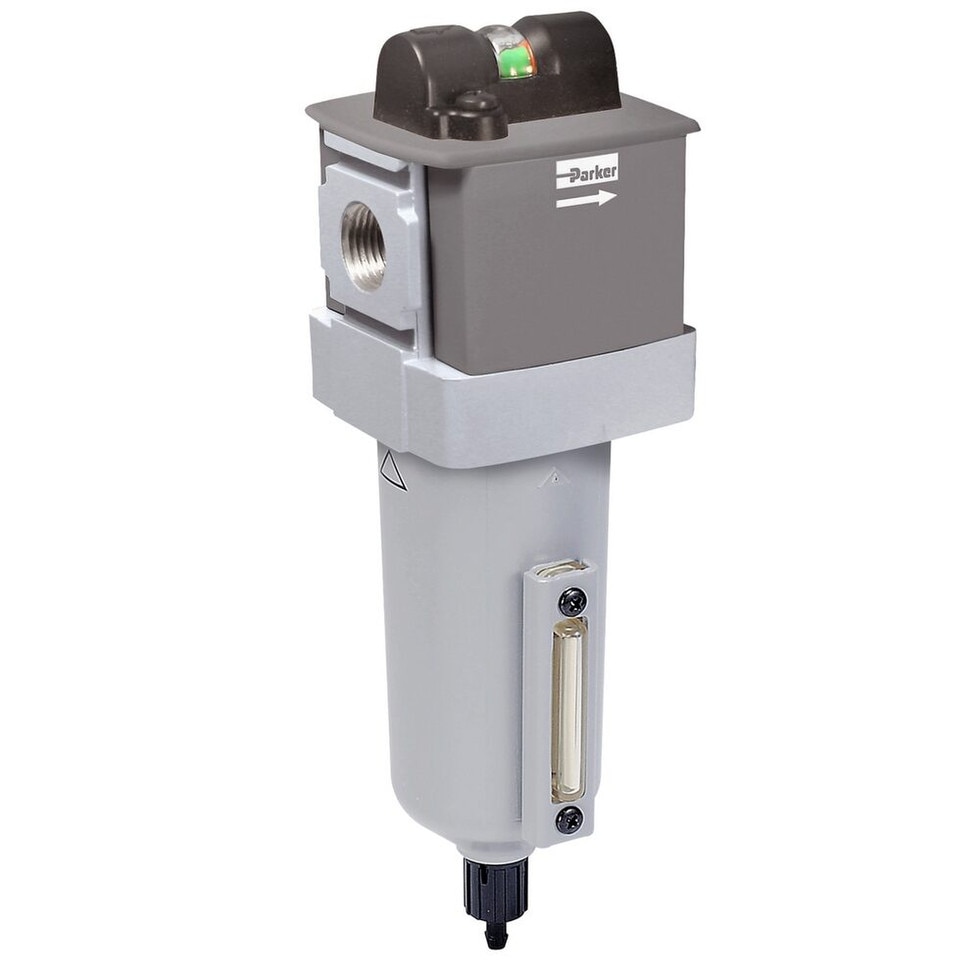

Parker's P33F Standard Coalescing Filter, with differential pressure gauge, is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P33F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P33F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.
Markets:
• MRO
• Tier1 System Providers
• Material Handling Systems
• Coating/ Ink / Paint
• Plastic Processing
• Industries Chemical processing
• Food and Beverage
Features/Benefits:
• Integral 1/2" or 3/4" ports (NPT, BSPP & BSPT)
• High efficiency 5 micron element as standard
• Excellent water removal efficiency
• Robust but lightweight aluminum construction
• Positive bayonet latch to ensure correct & safe fitting
Applications:
• Cutting, welding, painting
• Machining
• Pick and place
• Packaging and wrapping systems
• Applications for tools
• Cylinder and Valve protection
• Pneumatic applications
• Chemical process
• Woodworking process
• Process engineering
Additional Information:
• Standard Coalescing and Adsorber Filter
• Element: 0.01u, 1u, Adsorber
• Port Type: BSPP, NPT
• Port Size: 1/2" | 3/4"
• Body Material: Aluminum
• Bowl Material: Polycarbonate, Aluminum
• Filter Material: Borosilicate Cloth, Activated Carbon (adsorber)
• Seals: Nitrile
• Pressure Rating (psig): 150 (plastic), 250 (metal)
• Pressure Rating (bar): 10 (plastic), 17 (metal)
• Temperature Rating (F): -13° to 125° (plastic bowl), -13° to 150° (metal bowl)
• Temperature Rating (C ): -25° to 52° (plastic bowl), -25° to 65.5° (metal bowl)
• Flow (SCFM): 68 (1µ), 42 (0.01µ), 72 (adsorber)
• Flow (dm³/s): 32 (1µ), 20 (0.01µ), 34 (adsorber)
• Drain Type: Manual, Auto
• Weight: 1.1 lb (0.50 kg)
