Metric Thread Mini Coalescing & Adsorber Filter - Global FRL - P31
Details
Details

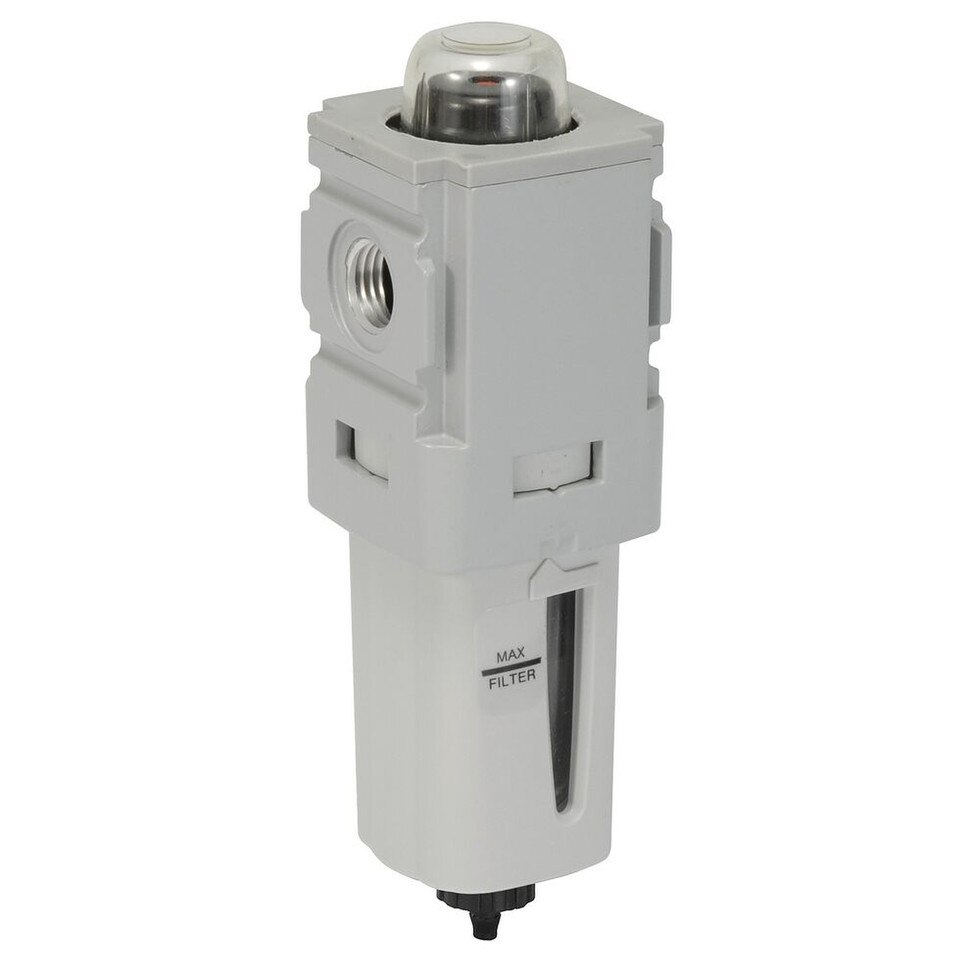

Parker's P31F Mini Coalescing Filter, with available differential pressure gauge, is designed to remove liquid aerosols, water, oil and submicron particulate matter. These filters will provide oil free air. The P31F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P31F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available make this series easy to configure for your application.
Markets:
• MRO
• Tier1 System Providers
• Material Handling Systems
• Coating / Ink / Paint
• Plastic Processing
• Industrial Chemical Processing
• Food and Beverage
Features/Benefits:
• Integral 1/4" ports (NPT, BSPP & BSPT)
• Removes liquid aerosols and sub micron particles
• Oil free air for pneumatic instrumentation and control
• Differential Pressure Indicator (DPI) standard on Coalescing Filters
• Positive bayonet latch to ensure correct and safe fitting
• Adsorbing activated carbon element removes oil vapors and most hydrocarbons
Applications:
• These filters will provide oil free air for several demanding applications wherever Class1 quality of compressed air is requested.
• Cutting, welding, painting
• Machining
• Pick and place
• Packaging and wrapping systems
• Applications for tools
• Cylinder and valve protection
• Pneumatic applications
• Chemical process
• Woodworking process
• Process engineering
Additional Information:
• Mini Coalescing and Absorber Filter
• Element: 0.01µ, 1µ, Absorber
• Port Type: BSPP, NPT
• Port Size: 1/4"
• Body Material: Aluminum
• Bowl Material: Polycarbonate, Aluminum
• Filter Material: Borosilicate Cloth, Activated Carbon (absorber)
• Seals: Nitrile
• Pressure Rating (psig): 150 (plastic and metal with DPI), 250 (metal)
• Pressure Rating (bar): 10 (plastic and metal with DPI), 17 (metal)
• Temperature Rating (F): 14° to 125° (plastic bowl), 14° to 150° (metal bowl)
• Temperature Rating (C ): -10° to 52° (plastic bowl), -10° to 65.5° (metal bowl)
• Flow (SCFM): 12 (1µ), 7.5 (0.01µ), 12.7 (absorber)
• Flow (dm³/s): 5.5 (1µ), 3.6 (0.01µ), 6 (absorber)
• Drain Type: Manual, Pulse
• Weight: 0.24 lb (0.11 kg)
