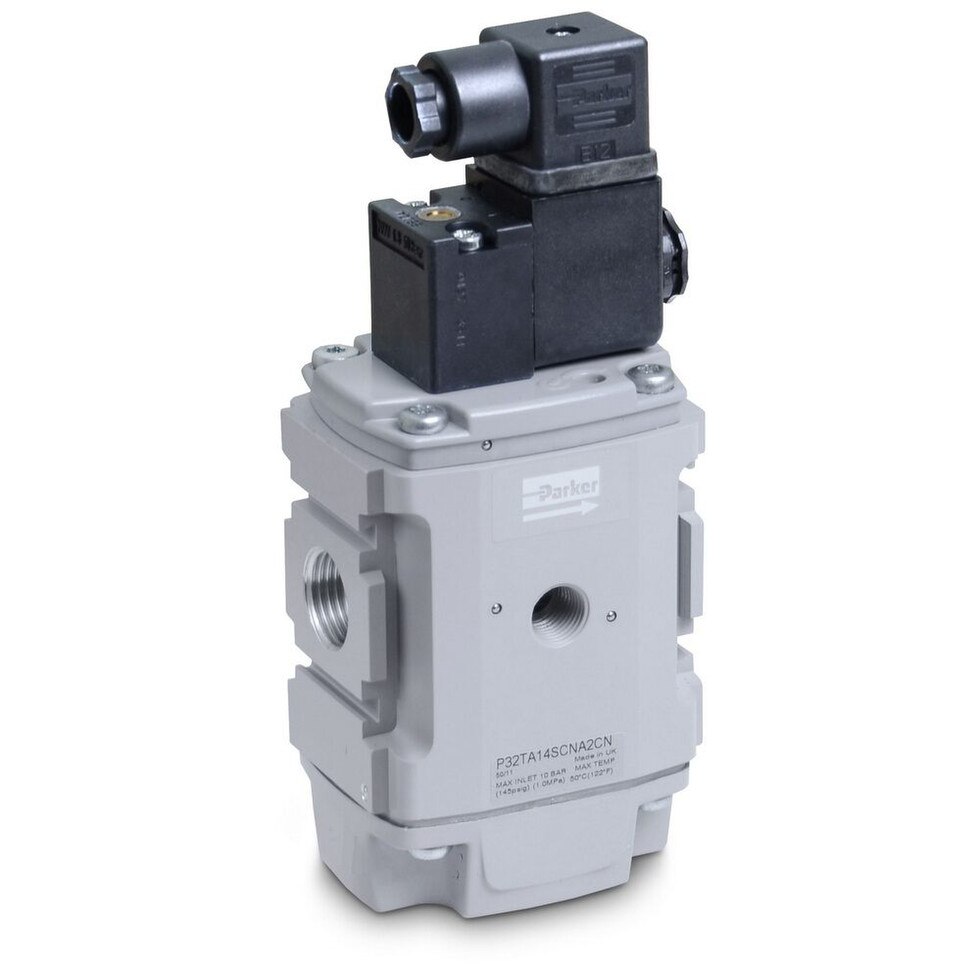

Metric Thread Compact Dump Valve - Global FRL - P32
Details
Details
Parker P32D Global Dump Valves efficiently manages pressure by safely and quickly exhausting pneumatic energy in an industrial environment. The quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve, providing full air flow to the downstream. When the solenoid is de-energized, the main valve closes, allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so exhaust may be piped away or fitted with a muffler/silencer. The P32D can be mounted using a modular connector to other P32 global air preparation products.
Markets:
• Factory Automation
• Heavy Industries Features/Benefits:
• Safely and quickly exhaust pneumatic energy
• Modular design with integrated ports
• Robust & lightweight aluminum construction
• 3 way 2 function automatically dumps downstream pressure on the loss of pilot signal
• High flow & exhaust capacity
• Solenoid or air pilot operation options
• Silencer included
Applications:
• Assembly, production lines
