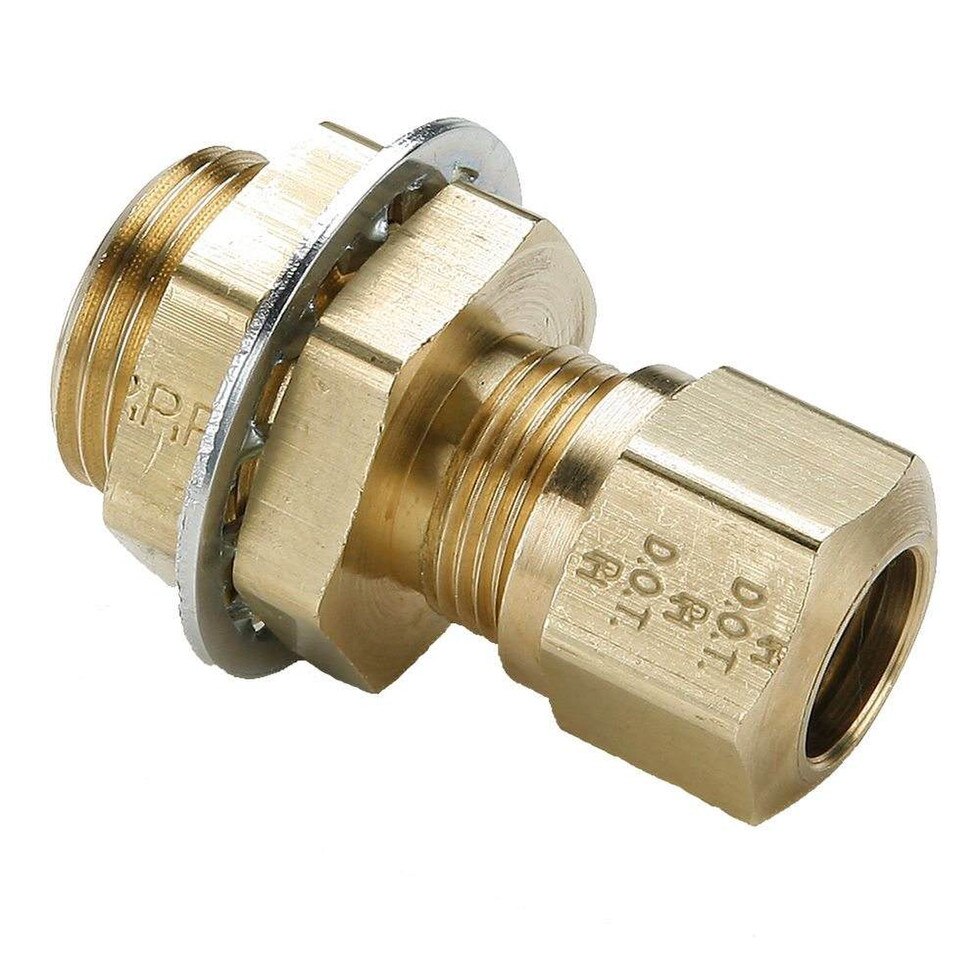

Tube to Female Pipe - Bulkhead - Air Brake D.O.T. Compression Fittings for J844 Tubing - NTA

Quantity	Price

SKU: 66NBH-8-6

Estimated Dock Date

List Price / Net Cost

Connection 1 Tube O.D. : 1/2 in

1/2 in

Connection 2 Thread Size : 3/8 in

3/8 in

Customer Revision

$20.82

Don't worry! Items not currently on hand in our warehouse can typically be secured and shipped to you within 5 business days. Some items require additional lead-time based on manufacturer availability. Proceed with your order of this item and we will contact you with an estimated ship date!

Available: 0

Quantity available represents our stock on hand for immediate shipment. If you require additional quantities place your order for the full amount and we will secure the additional stock you need!

66NBH-8-6

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.

Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing

Markets:

• Heavy duty truck
• Trailer
• Mobile

Features/Benefits:

• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant

Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls

Custom configurations and sizes are available upon request. Contact us for additional information.

Part Number
66NBH-8-6

Thread Sealant Material	Vibra-Seal 516
Sleeve Material	Brass
Minimum Operating Temperature	-40 °F
Nut Material	Brass
Tube Material	Stainless Steel
Maximum Operating Pressure	10 bar
Body Material	Brass
Application	Air Brake, Accessories
Maximum Operating Temperature	200 °F
Minimum Operating Temperature	-40 °C
Tube Material	SAE J844 Type A & B Nylon Tubing
Maximum Operating Temperature	93 °C
Body Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Division	Fluid System Connectors Division
Maximum Operating Pressure	150 psi
