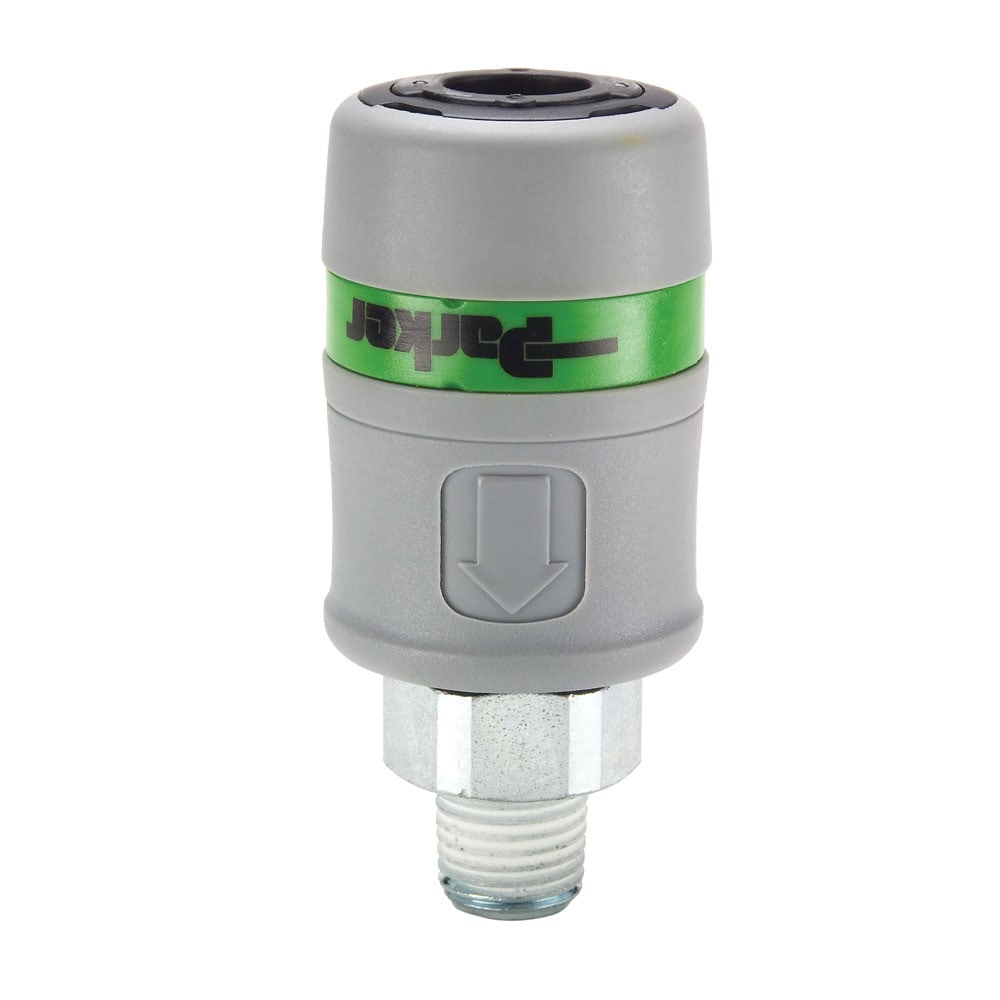

Tool-Mate (RF Style) Non-Maring Coupler with Male Thread
 Non-Maring Coupler with Male Thread-media_01.jpg?resizeid=4&resizeh=980&resizew=1170)
Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.
Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.
Tool-Mate Series Standard Air Couplers, up to 300 psi, are available in two connection styles to accept either Industrial Interchange Nipples or Rectus 25 Series (European High Flow profile) Nipples. The connection style is visually indicated by a colored band on the sleeve. Yellow designates Industrial Interchange and green designates European High Flow style. Parker's Tool-Mate Series are non-marking, push-to-connect, single shut off quick connect couplers. Coupler bodies are lightweight Polyamide material. Tool-Mate PBH and PER part numbers are NOT pressure venting.
Technical Characteristics:
• Sizes: 1/4”, 3/8”
• Materials: Polyamide material with galvanized steel port ends
• Port Ends: Female NPTF, Male NPTF
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Easy push to connect operation
• Lightweight non-marring body helps to prevent damage to surface finishes and painted coatings during assembly operations
• Yellow band visually indicates Industrial Interchange connection style. Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B).
• Green band visually indicates European High Flow connection style. Connects with Parker's Rectus 25 Series Nipples and other high flow profile nipples.
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Drop-down air lines
• Blow guns
| Coupling Half | Coupler |
| Division | Quick Coupling Division |
| Sleeve Type | Push-to-Connect |
| Body Material | Polyamide |
| Application | Air |
| Minimum Operating Temperature | 0 °F |
| Lock Type | Polyacetate Locking Fingers |
| Plating Type | Galvanized Steel Port Ends |
| Media | Compressed Air |
| Specifications Met | Connects with RF style nipples |
| Maximum Operating Temperature | 160 °F |
| Valve Type | Tubular |
| Maximum Operating Pressure | 300 psi |
| Seal Material | Nitrile |
| Part Number |
|---|
| PER-251-4MP |
