Standard Thread Standard Particulate Filter - Global FRL - P33
Details
Details

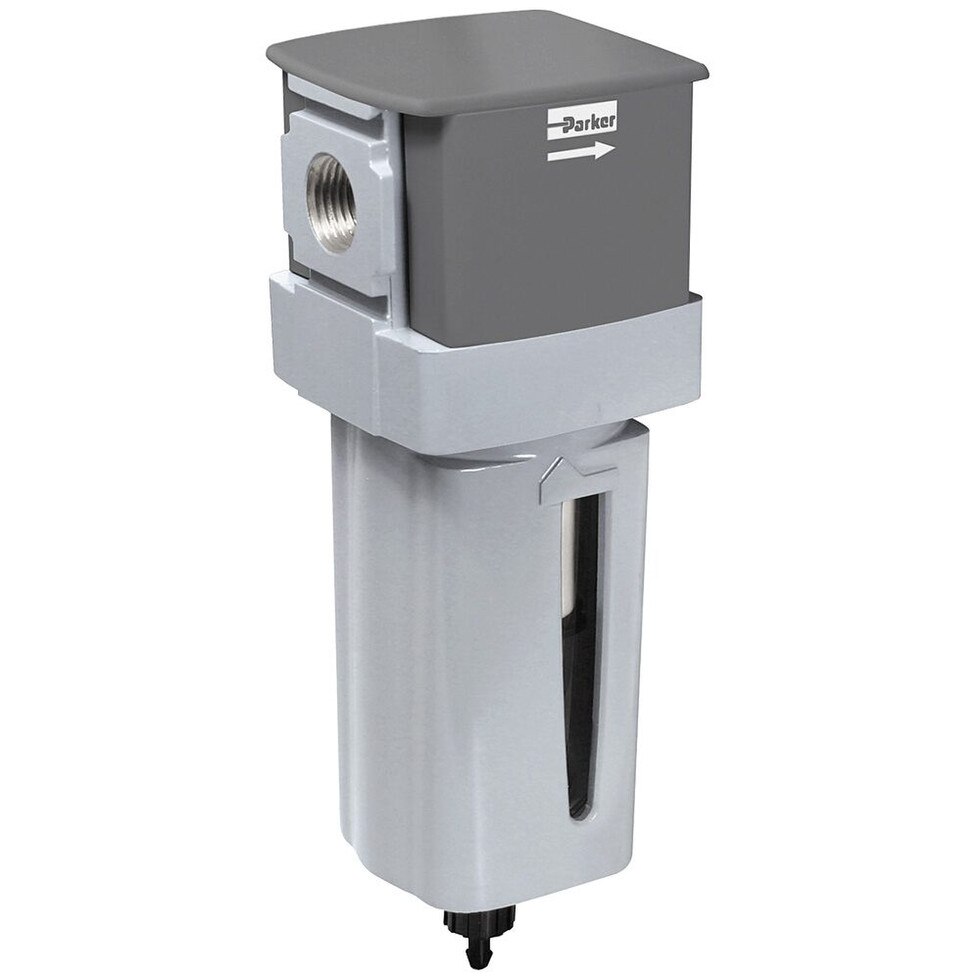

Parker's P33F is a standard particulate filter that delivers high moisture removal in a compact package. The P33F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The P33E can also be mounted using a modular connector to other P33 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.
• Standard particulate filter
• Element: 5 Micron
• Port Size (in): 1/2", 3/4"
• Drain Type: Manual Drain or Auto Drain
• Thread Type: NPT, BSPP, BSPT
• Maximum Supply Pressure (bar):
Polycarbonate Bowl = 10 bar,
Metal Bowl = 17 bar
• Maximum Supply Pressure (psi):
Polycarbonate Bowl = 150 psig,
Metal Bowl = 250 psig
• Operating Temperature (C):
Polycarbonate Bowl = -25° to 52° C,
Metal Bowl = -25° to 65.5° C
• Operating Temperature (F):
Polycarbonate Bowl = -13° to 125° F,
Metal Bowl = -13° to 150° F
• Mounting: Inline or Bracket Mounted
• Flow Capacity (SCFM):
1/2" = 85 SCFM,
3/4" = 102 SCFM
• Body Material: Aluminum
• Bowl Material: Polycarbonate or Aluminum
• Sight Gauge Material: Polycarbonate
• Filter Element: Sintered Polyethylene
• Seals: Nitrile
• Weight: 1.01 lbs (0.46 kg)
• Standard particulate filter
• Element: 5 Micron
• Port Size (in): 1/2", 3/4"
• Drain Type: Manual Drain or Auto Drain
• Thread Type: NPT, BSPP, BSPT
• Maximum Supply Pressure (bar):
Polycarbonate Bowl = 10 bar,
Metal Bowl = 17 bar
• Maximum Supply Pressure (psi):
Polycarbonate Bowl = 150 psig,
Metal Bowl = 250 psig
• Operating Temperature (C):
Polycarbonate Bowl = -25° to 52° C,
Metal Bowl = -25° to 65.5° C
• Operating Temperature (F):
Polycarbonate Bowl = -13° to 125° F,
Metal Bowl = -13° to 150° F
• Mounting: Inline or Bracket Mounted
• Flow Capacity (SCFM):
1/2" = 85 SCFM,
3/4" = 102 SCFM
• Body Material: Aluminum
• Bowl Material: Polycarbonate or Aluminum
• Sight Gauge Material: Polycarbonate
• Filter Element: Sintered Polyethylene
• Seals: Nitrile
• Weight: 1.01 lbs (0.46 kg)
