Standard Thread Standard Filter/Regulator - Global FRL - P33
Details
Details

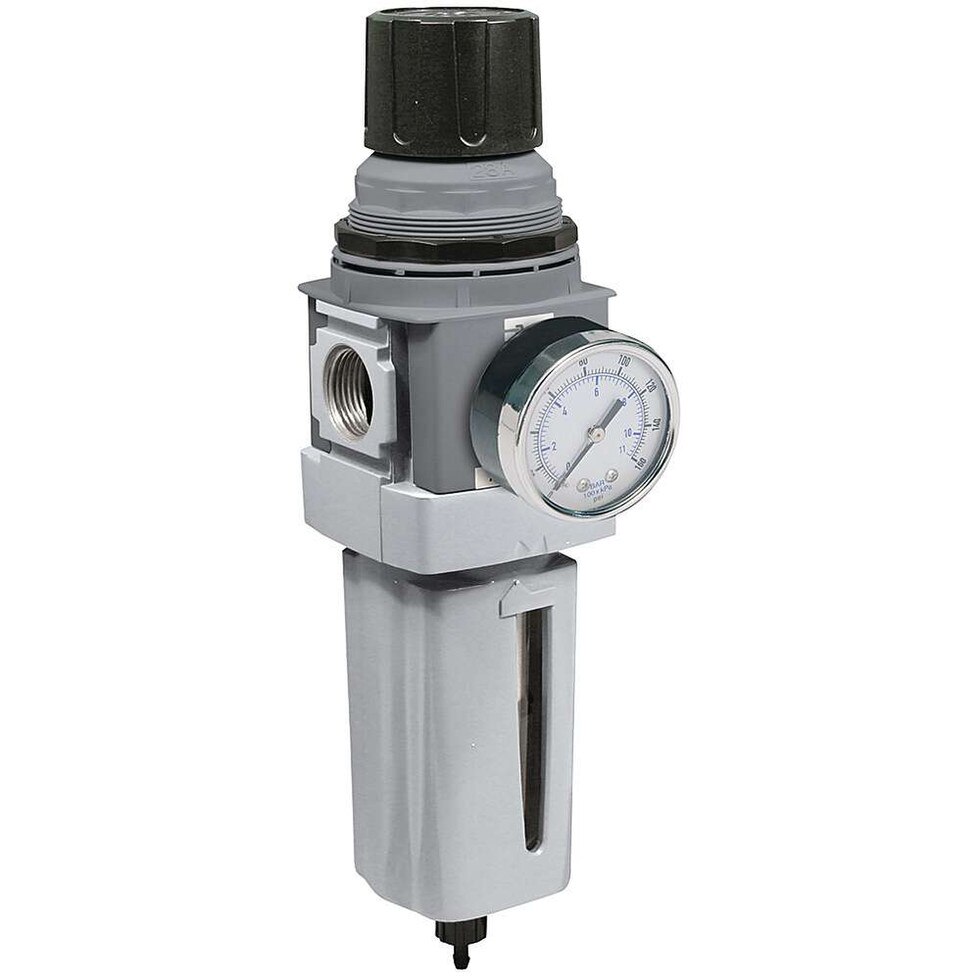

Parker's P33E is a compact particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. P33E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With a balanced poppet design and a 5 micron filter element this filter/regulator delivers quick response, accurate pressure regulation and a high rate of particulate removal. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The P33E can also be mounted using a modular connector to other P33 global air preparation product.
• Global Modular Standard Filter/Regulator
• Element: 5 micron
• Port Size: 1/2" | 3/4"
• Gauge Port Size: 1/4"
• Relieving | Non-Relieving
• Drain Type: Manual | Auto
• Thread Type: BSPP | BSPT | NPT
• Maximum Supply Pressure (bar): 10 (plastic bowl) | 17 (metal bowl)
• Maximum Supply Pressure (psi): 150 (plastic bowl) | 250 (metal bowl)
• Operating Temperature (C): -25° to 52° (plastic bowl) | -25° to 65.5° (metal bowl)
• Operating Temperature (F): -13° to 125° (plastic bowl) | -13° to 150° (metal bowl)
• Preset Pressure Option: No
• Pressure Range (psig): 0 to 30 | 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 2 | 0 to 4 | 0 to 8 |0 to 17
• Mounting: Plastic panel mount nut
• Flow Capacity (SCFM): 210 (1/2") | 230 (3/4")
• Body and Adjustment Knob Material: Aluminum | Acetal
• Bowl Material: Polycarbonate | Aluminum
• Filter Element: Sintered Polyethylene
• Seals: Nitrile
• Weight: 1.87 lbs or 0.85 kg
