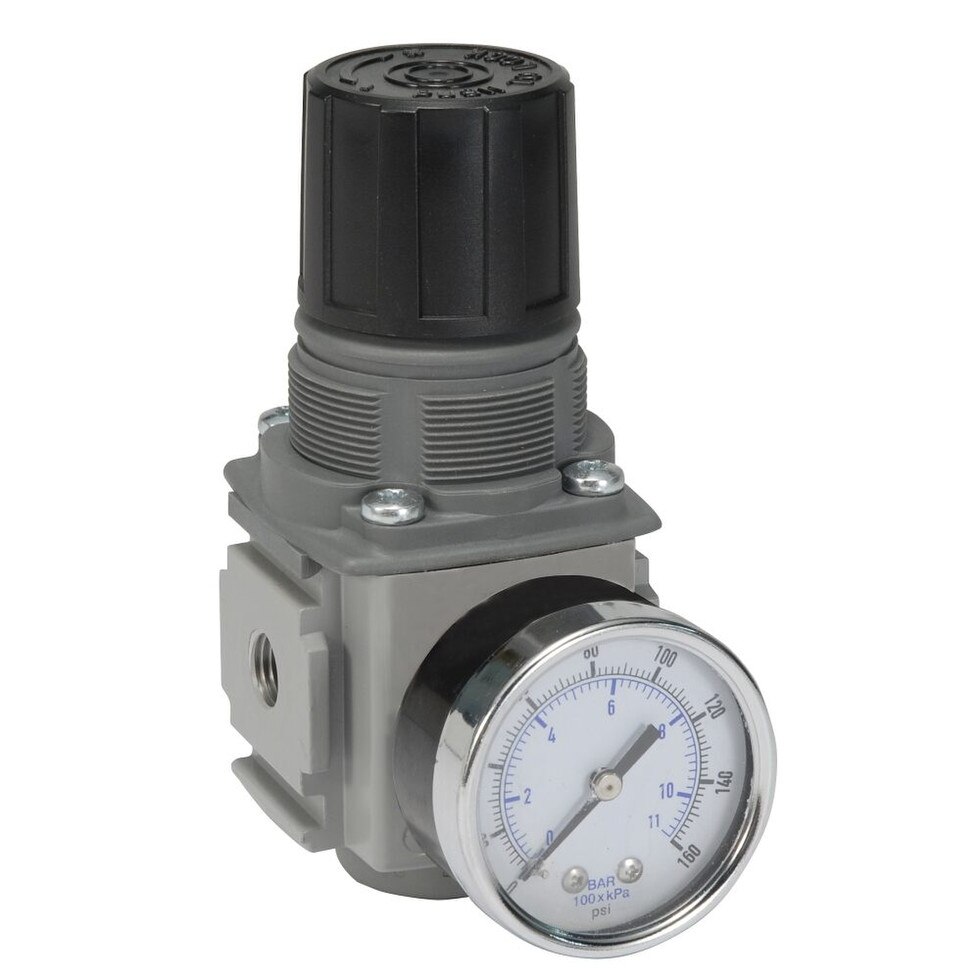

Standard Thread Compact Regulator - Global FRL - P32
Details
Details
P32R modular global compact regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure. They provide quick response and accurate pressure regulation for the most demanding industrial applications. They are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation.
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself. The P32R can be mounted using a modular connector to other P32 and/or P33 global air preparation products. With various options available, this series is easy to design to your application.
• Product Type: Compact Regulator
• Port Size: 1/4", 3/8", 1/2"
• Port Type: BSPP, BSPT, NPT
• Maximum Inlet Pressure (PSIG): 300
• Maximum Inlet Pressure (bar): 20
• Operating Temperature (°F): -13° to 150°
• Operating Temperature (°C): -25° to 65.5°
• Pressure Control Range (PSIG): 0 to 30 | 0 to 60 | 0 to 125 | 0 to 250
• Pressure Control Range (bar): 0 to 2 | 0 to 4 | 0 to 8 | 0 to 17
• Flow Rate (SCFM): 148 | 165 | 165
• Flow Rate (dm³/s): 70 | 78 | 78
• Body Material: Aluminum
• Seal Material: Nitrile, Option: Fluorocarbon
• Weight (lb): 0.9
• Weight (kg): 0.41
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself. The P32R can be mounted using a modular connector to other P32 and/or P33 global air preparation products. With various options available, this series is easy to design to your application.
• Product Type: Compact Regulator
• Port Size: 1/4", 3/8", 1/2"
• Port Type: BSPP, BSPT, NPT
• Maximum Inlet Pressure (PSIG): 300
• Maximum Inlet Pressure (bar): 20
• Operating Temperature (°F): -13° to 150°
• Operating Temperature (°C): -25° to 65.5°
• Pressure Control Range (PSIG): 0 to 30 | 0 to 60 | 0 to 125 | 0 to 250
• Pressure Control Range (bar): 0 to 2 | 0 to 4 | 0 to 8 | 0 to 17
• Flow Rate (SCFM): 148 | 165 | 165
• Flow Rate (dm³/s): 70 | 78 | 78
• Body Material: Aluminum
• Seal Material: Nitrile, Option: Fluorocarbon
• Weight (lb): 0.9
• Weight (kg): 0.41
