Standard Thread Compact Particulate Filter - Global FRL - P32

(0) No Reviews yet
$49.73 to $81.83
SKU: Standard Thread Compact Particulate Filter - Global FRL P32
$49.73 to $81.83

Quantity available represents our stock on hand for immediate shipment. If you require additional quantities place your order for the full amount and we will secure the additional stock you need!

Current Stock: 23

Each

Details

Details

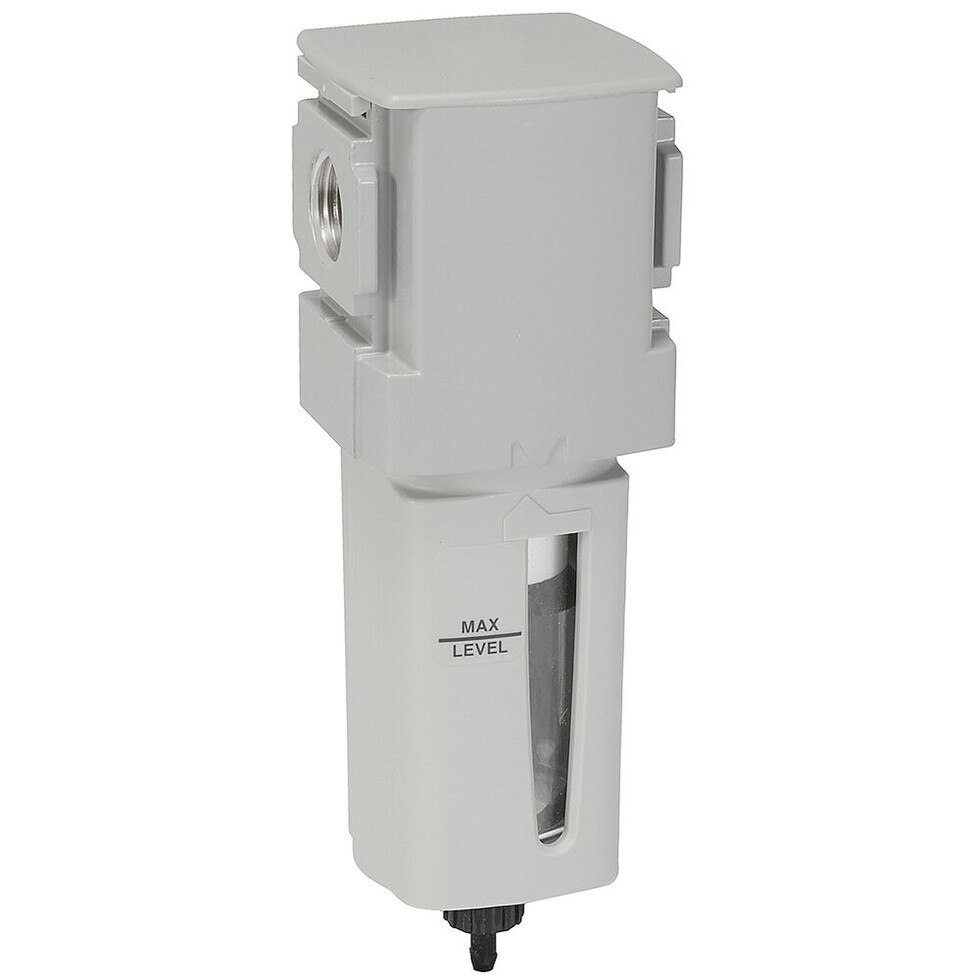

Parker's P32F is a compact particulate filter that delivers high moisture removal in a compact package. The P32F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system.  For specific flow and space restricted applications this product can provide a solution that doesn't sacrifice performance.  The P32E can also be mounted using a modular connector to other P32 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.


  • Compact particulate filter
  • Element: 5 Micron
  • Port Size (in): 1/4", 3/8", 1/2"
  • Drain Type: Manual Drain or Auto Drain
  • Thread Type: NPT, BSPP, BSPT
  • Maximum Supply Pressure (bar): Polycarbonate Bowl = 10 bar, Metal Bowl = 17 bar
  • Maximum Supply Pressure (psi): Polycarbonate Bowl = 150 psig, Metal Bowl = 250 psig
  • Operating Temperature (C): Polycarbonate Bowl = -10° to 52° C, Metal Bowl = -10° to 65.5° C
  • Operating Temperature (F): Polycarbonate Bowl = 14° to 125° F, Metal Bowl = 14° to 150° F
  • Mounting: Inline or Bracket Mounted
  • Flow Capacity (SCFM): 1/4 " = 50 SCFM, 3/8" = 78 SCFM, 1/2" = 82 SCFM
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate or Aluminum
  • Sight Gauge Material: Polycarbonate
  • Filter Element: Sintered Polyethylene
  • Seals: Nitrile
  • Weight: 0.62 lbs (0.28 kg)
