Metric Thread Mini Proportional Regulator - Global FRL - P31
Details
Details

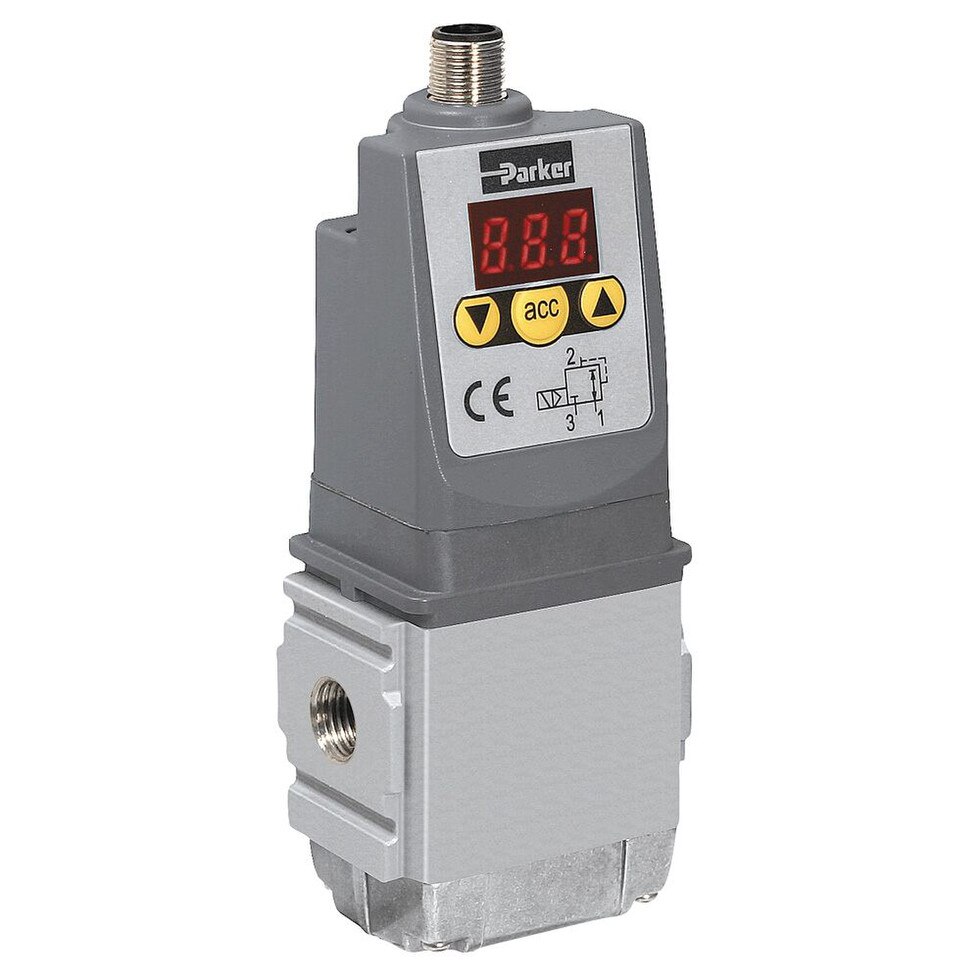

P31P programmable electronic proportional regulators allow for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes an onboard user friendly LED display for changing and customizing parameters such as adjustment of pressure limits, control signal (0-10V or 4-20mA), output control signal, span analog output signal, digital display, set pressure scale (PSIG, bar, Mpa), minimum and/or maximum pressure, and behavior control. Units can be ordered in normally closed (NC) or forced exhaust normally open (NO) versions. For the forced exhaust version, when supply voltage is lost, the unit will automatically exhaust the regulated pressure to zero. Internal pulse-width modulated valves control the output pressure proportionally to a field convertible analog input control signal of 0-10V or 4-20mA.
The unit is comprised of a traditional servo-operated pneumatic pressure regulator, where the pilot chamber is fed by one of two pulse-width modulated 2-way solenoid valves. An internal pressure sensor measures the output pressure of the regulator and provides a feedback signal to the controller. Any difference between the control signal and the feedback signal is converted to a digital signal to energize one or the other 2-way valves to correct the position of the regulator.
• Regulator type electronic proportional (pulse-width modulated)
• Working medium 40μ filtered compressed air | Inert gas
• Display LED
• Programming key pad
• Pressure control range (PSIG) 0 to 29 | 0 to 101.5 | 0 to 145
• Pressure control range (bar) 0 to 2 | 0 to 7 | 0 to 10
• Inlet pressure range (PSIG) 0 to 43.5 | 0 to 152
• Inlet pressure range (bar) 0 to 3 | 0 to 10.5
• Maximum flow (SCFM) 40
• Maximum flow (m3/h) 68
• Port type BSPP | NSPT | NPT
• Port size 1/4"
• Temperature range ambient (F) 32° to 122°
• Temperature range ambient (C ) 0° to 50°
• Weight (kg) 0.291
• Weight (lb) 0.64
• Rating IP65
• Supply voltage (V) 24 VDC
• Power consumption (W) 1.1
• Control signal 0 to 10V | 4 to 20 mA
• Power supply / Control signal M12 Micro; 4-Pin
• Filling response time (msec) 25 to 135
• Emptying response time (msec) 70 to 225
The unit is comprised of a traditional servo-operated pneumatic pressure regulator, where the pilot chamber is fed by one of two pulse-width modulated 2-way solenoid valves. An internal pressure sensor measures the output pressure of the regulator and provides a feedback signal to the controller. Any difference between the control signal and the feedback signal is converted to a digital signal to energize one or the other 2-way valves to correct the position of the regulator.
• Regulator type electronic proportional (pulse-width modulated)
• Working medium 40μ filtered compressed air | Inert gas
• Display LED
• Programming key pad
• Pressure control range (PSIG) 0 to 29 | 0 to 101.5 | 0 to 145
• Pressure control range (bar) 0 to 2 | 0 to 7 | 0 to 10
• Inlet pressure range (PSIG) 0 to 43.5 | 0 to 152
• Inlet pressure range (bar) 0 to 3 | 0 to 10.5
• Maximum flow (SCFM) 40
• Maximum flow (m3/h) 68
• Port type BSPP | NSPT | NPT
• Port size 1/4"
• Temperature range ambient (F) 32° to 122°
• Temperature range ambient (C ) 0° to 50°
• Weight (kg) 0.291
• Weight (lb) 0.64
• Rating IP65
• Supply voltage (V) 24 VDC
• Power consumption (W) 1.1
• Control signal 0 to 10V | 4 to 20 mA
• Power supply / Control signal M12 Micro; 4-Pin
• Filling response time (msec) 25 to 135
• Emptying response time (msec) 70 to 225
