Metric Thread Mini Particulate Filter - Global FRL - P31
Details
Details

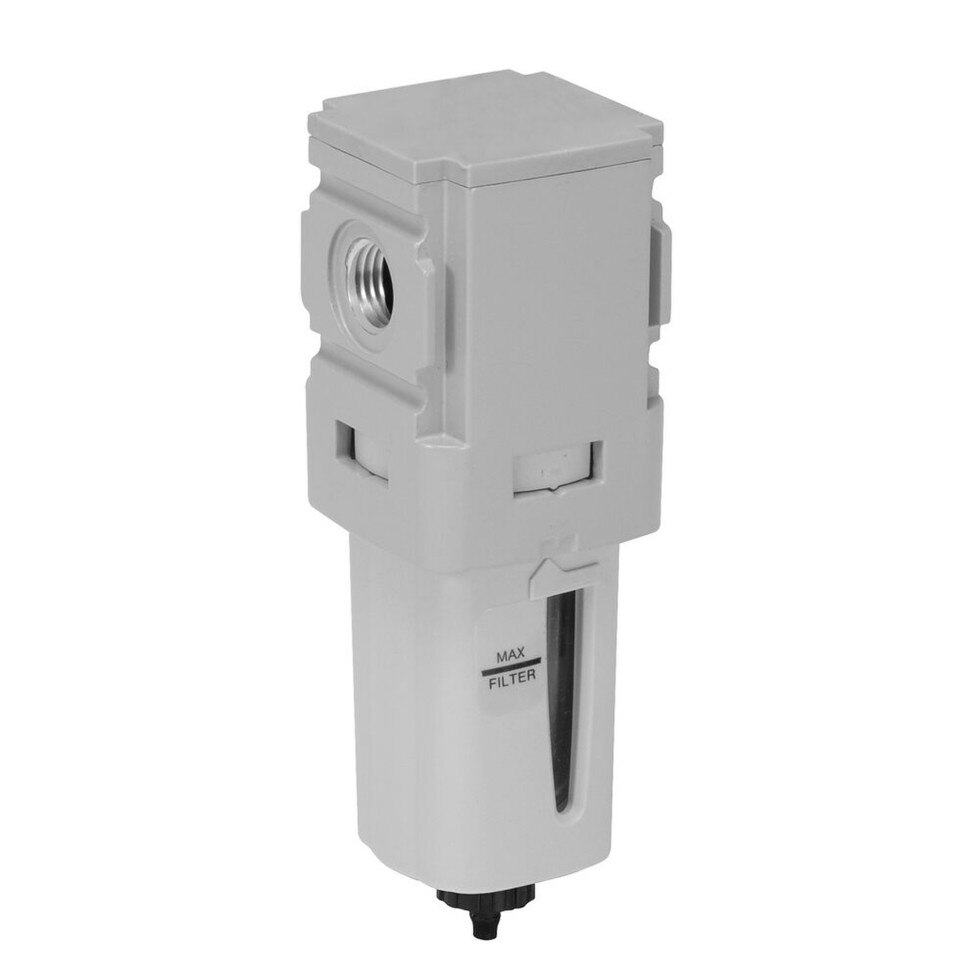

Parker's P31F is a mini particulate filter that delivers high moisture removal in a compact package. The P31F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The P31E can also be mounted using a modular connector to other P31 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.
• Miniature particulate filter
• Element: 5 Micron
• Port Size (in): 1/4"
• Drain Type: Manual Drain or Pulse Drain
• Thread Type: NPT, BSPP, BSPT
• Maximum Supply Pressure (bar): Polycarbonate Bowl = 10 bar, Metal Bowl = 17 bar
• Maximum Supply Pressure (psi): Polycarbonate Bowl = 150 psig, Metal Bowl = 250 psig
• Operating Temperature (C): Polycarbonate Bowl = -10° to 52° C, Metal Bowl = -10° to 65.5° C
• Operating Temperature (F): Polycarbonate Bowl = 14° to 125° F, Metal Bowl = 14° to 150° F
• Mounting: Inline or Bracket Mounted
• Flow Capacity (SCFM): 25 SCFM
• Body Material: Aluminum
• Bowl Material: Polycarbonate
• Filter Element: Sintered Polyethylene
• Seals: Nitrile
• Weight: 0.24 lbs (0.11 kg)
• Miniature particulate filter
• Element: 5 Micron
• Port Size (in): 1/4"
• Drain Type: Manual Drain or Pulse Drain
• Thread Type: NPT, BSPP, BSPT
• Maximum Supply Pressure (bar): Polycarbonate Bowl = 10 bar, Metal Bowl = 17 bar
• Maximum Supply Pressure (psi): Polycarbonate Bowl = 150 psig, Metal Bowl = 250 psig
• Operating Temperature (C): Polycarbonate Bowl = -10° to 52° C, Metal Bowl = -10° to 65.5° C
• Operating Temperature (F): Polycarbonate Bowl = 14° to 125° F, Metal Bowl = 14° to 150° F
• Mounting: Inline or Bracket Mounted
• Flow Capacity (SCFM): 25 SCFM
• Body Material: Aluminum
• Bowl Material: Polycarbonate
• Filter Element: Sintered Polyethylene
• Seals: Nitrile
• Weight: 0.24 lbs (0.11 kg)
