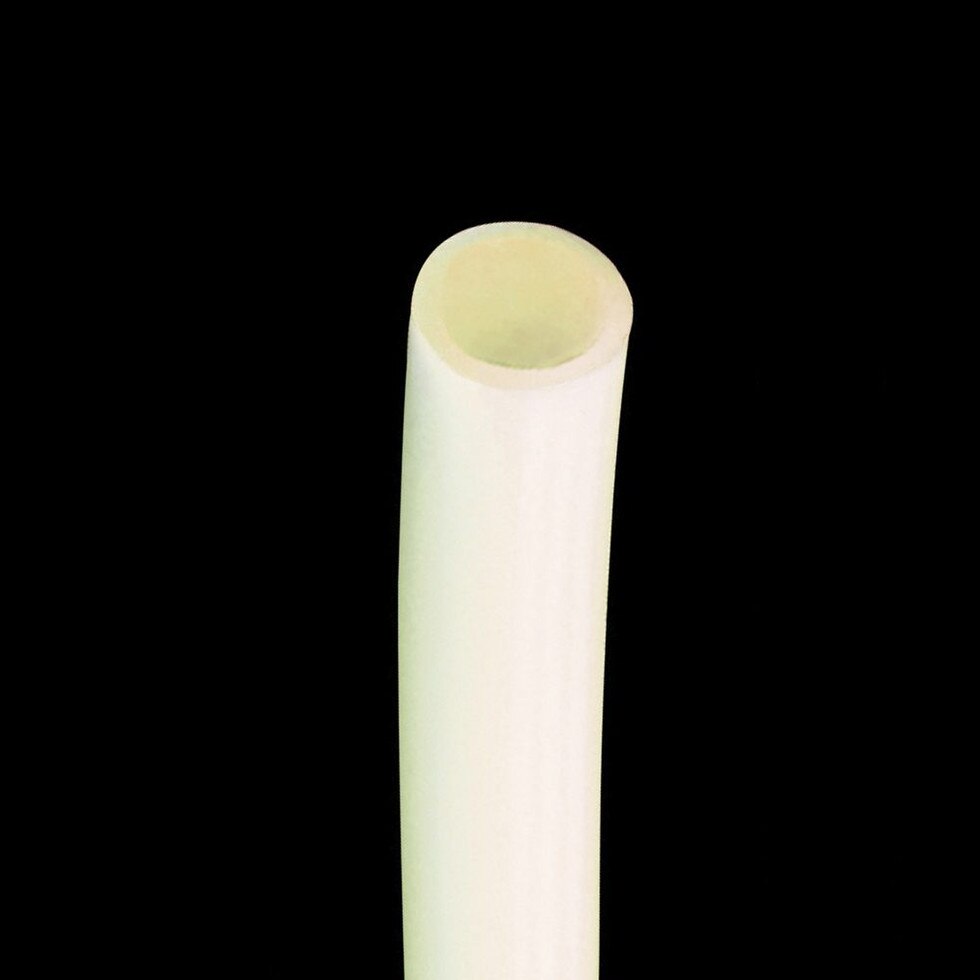

Flex, 3/8 in Industrial Wall - Series 110

Quantity	Price

SKU: 110-0375031-NT-100

Estimated Dock Date

List Price / Net Cost

Hose I.D. : 1/4 in (-4)

1/4 in (-4)

Hose O.D. : 0.37 in

0.37 in

Customer Revision

$1.34

Don't worry! Items not currently on hand in our warehouse can typically be secured and shipped to you within 5 business days. Some items require additional lead-time based on manufacturer availability. Proceed with your order of this item and we will contact you with an estimated ship date!

Available: 0

Quantity available represents our stock on hand for immediate shipment. If you require additional quantities place your order for the full amount and we will secure the additional stock you need!

110-0375031-NT-100

Note: This product is no longer available - please contact us for further assistance.

PVDF (Polyvinylidene Fluoride) is a tough engineering Fluoropolymer that offers a combination of properties beneficial for use in many critical applications requiring chemical resistance with low permeability. Commonly referred to as Kynar®*, PVDF exhibits low extractable levels, while providing high mechanical strength, excellent abrasion resistance, and good resistance to many chemicals and solvents. Parker TexLoc’s PVDF tubing is excellent for use in ultrapure water systems and ground water monitoring. PVDF Tubing also offers better chemical resistance than thermoplastics and is a cost effective alternative to PTFE tubing when extreme temperatures are not required. It is available in Flex™ (Series 110) or Super-Flex™ (Series 111) designs.

* Kynar is a registered tradename of Arkema, Inc.

Markets:
• Fluid Transfer
• Industrial
• Food and Beverage
• Utilities

Features/Benefits:
• Good chemical and corrosion resistance
• Cost effective alternative to PTFE tubing
• Excellent abrasion resistance
• Low permeability
• Low outgassing
• Super-Flex™ offers 10x the flexibility of the standard Flex™ tube

Applications:
• Fluid Handling
• Gas
• Food
• Thermal cycling
• Outdoor/extreme conditions
• Water systems
• Ground water monitoring

Certifications:
• ASTM D 3222
• FDA Compliant
• RoHS
• VW-1, UL-83

Technical Specifications:
• Working and burst pressures rated 73°F /23°C; Working pressure is reduced with rising temperature and this effect is more pronounced with Series 111
• Qualified with Compression, Compress-Align®, Metric-Compression & True Seal™ Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service

Part Number
110-0375031-NT-100

Specifications Met	RoHS
Compatible Fitting	Compress-Align®
Specifications Met	VW 1
Specifications Met	FDA
Division	Parflex Division
Tube Inside Diameter	0.25 inch
Minimum Burst Pressure	31.6 bar
Compatible Fitting	TrueSeal™
Media	Industrial Gases
Specifications Met	UL 83
Media	Water
Media	Food & Beverage
Color	Natural
Minimum Burst Pressure	459 psi
Specifications Met	ASTM D3222
Application	Thermal Cycling
Application	Semiconductor
Minimum Operating Temperature	-80 °F
Minimum Operating Temperature	-62 °C
Application	Water Systems
Maximum Operating Temperature	265 °F
Application	Food
Application	Gas Transfer
Minimum Bend Radius	2.5 inch
Compatible Fitting	Compression
Length per Package	100 ft
Maximum Operating Temperature	130 °C
Size	3/8 x 0.030 inch
Tube Outside Diameter	9.52 mm
Tube Inside Diameter	6.35 mm
Length per Package	30.479 m
Maximum Operating Pressure	6.3 bar
Minimum Bend Radius	64 mm
Media	Chemicals
Tube Material	Polyvinylidene Fluoride (PVDF)
Maximum Operating Pressure	92 psi
Tube Outside Diameter	0.375 inch
Application	Environmental
