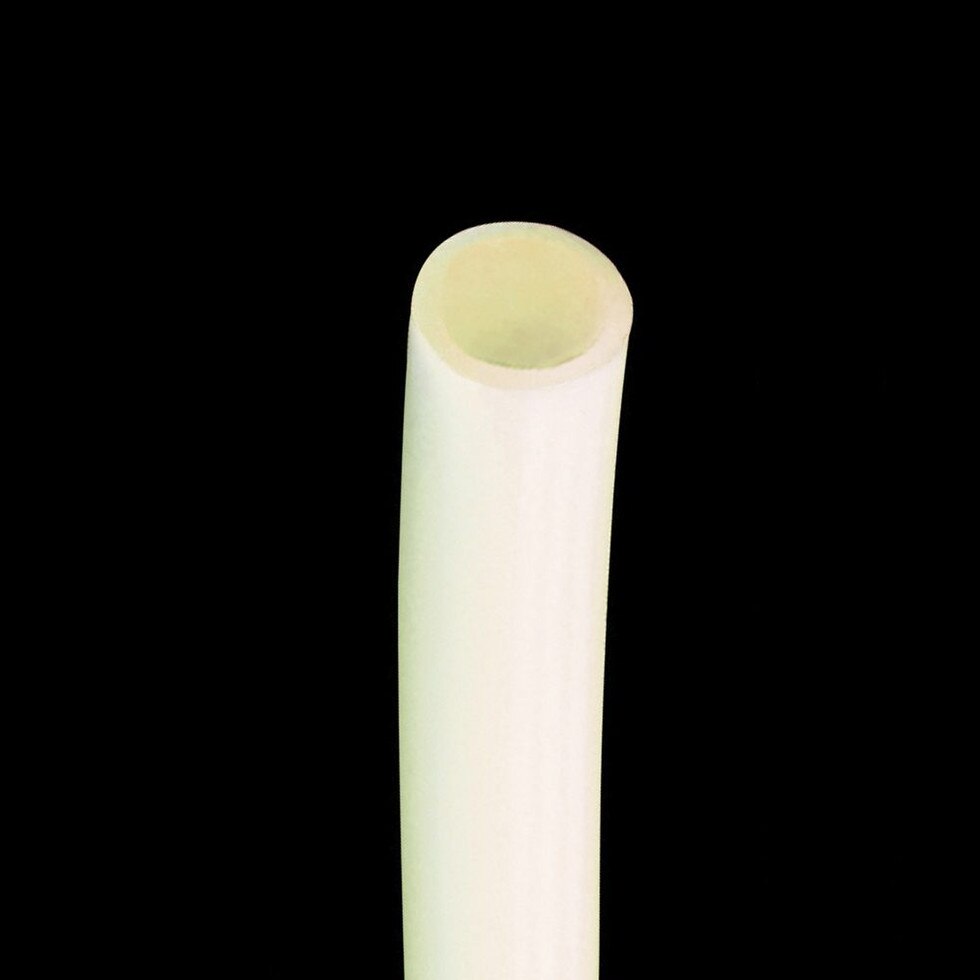

Flex, 3/16 in Industrial Wall - Series 110
Note: This product is no longer available - please contact us for further assistance.
Note: This product is no longer available - please contact us for further assistance.
PVDF (Polyvinylidene Fluoride) is a tough engineering Fluoropolymer that offers a combination of properties beneficial for use in many critical applications requiring chemical resistance with low permeability. Commonly referred to as Kynar®*, PVDF exhibits low extractable levels, while providing high mechanical strength, excellent abrasion resistance, and good resistance to many chemicals and solvents. Parker TexLoc’s PVDF tubing is excellent for use in ultrapure water systems and ground water monitoring. PVDF Tubing also offers better chemical resistance than thermoplastics and is a cost effective alternative to PTFE tubing when extreme temperatures are not required. It is available in Flex™ (Series 110) or Super-Flex™ (Series 111) designs.
* Kynar is a registered tradename of Arkema, Inc.
Markets:
• Fluid Transfer
• Industrial
• Food and Beverage
• Utilities
Features/Benefits:
• Good chemical and corrosion resistance
• Cost effective alternative to PTFE tubing
• Excellent abrasion resistance
• Low permeability
• Low outgassing
• Super-Flex™ offers 10x the flexibility of the standard Flex™ tube
Applications:
• Fluid Handling
• Gas
• Food
• Thermal cycling
• Outdoor/extreme conditions
• Water systems
• Ground water monitoring
Certifications:
• ASTM D 3222
• FDA Compliant
• RoHS
• VW-1, UL-83
Technical Specifications:
• Working and burst pressures rated 73°F /23°C; Working pressure is reduced with rising temperature and this effect is more pronounced with Series 111
• Qualified with Compression, Compress-Align®, Metric-Compression & True Seal™ Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service
* Kynar is a registered tradename of Arkema, Inc.
Markets:
• Fluid Transfer
• Industrial
• Food and Beverage
• Utilities
Features/Benefits:
• Good chemical and corrosion resistance
• Cost effective alternative to PTFE tubing
• Excellent abrasion resistance
• Low permeability
• Low outgassing
• Super-Flex™ offers 10x the flexibility of the standard Flex™ tube
Applications:
• Fluid Handling
• Gas
• Food
• Thermal cycling
• Outdoor/extreme conditions
• Water systems
• Ground water monitoring
Certifications:
• ASTM D 3222
• FDA Compliant
• RoHS
• VW-1, UL-83
Technical Specifications:
• Working and burst pressures rated 73°F /23°C; Working pressure is reduced with rising temperature and this effect is more pronounced with Series 111
• Qualified with Compression, Compress-Align®, Metric-Compression & True Seal™ Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service
| Specifications Met | UL 83 |
| Application | Semiconductor |
| Compatible Fitting | Compress-Align® |
| Application | Thermal Cycling |
| Application | Gas Transfer |
| Compatible Fitting | TrueSeal™ |
| Application | Food |
| Media | Water |
| Specifications Met | RoHS |
| Application | Water Systems |
| Media | Industrial Gases |
| Specifications Met | VW 1 |
| Tube Inside Diameter | 3.18 mm |
| Division | Parflex Division |
| Color | Natural |
| Minimum Operating Temperature | -62 °C |
| Maximum Operating Temperature | 130 °C |
| Tube Outside Diameter | 4.78 mm |
| Specifications Met | ASTM D3222 |
| Media | Food & Beverage |
| Tube Outside Diameter | 0.188 inch |
| Maximum Operating Temperature | 265 °F |
| Minimum Burst Pressure | 49.6 bar |
| Tube Inside Diameter | 0.125 inch |
| Minimum Bend Radius | 0.75 inch |
| Minimum Burst Pressure | 720 psi |
| Specifications Met | FDA |
| Length per Package | 100 ft |
| Minimum Operating Temperature | -80 °F |
| Media | Chemicals |
| Compatible Fitting | Compression |
| Tube Material | Polyvinylidene Fluoride (PVDF) |
| Size | 3/16 x 0.030 inch |
| Minimum Bend Radius | 19 mm |
| Maximum Operating Pressure | 180 psi |
| Length per Package | 30.479 m |
| Maximum Operating Pressure | 12.4 bar |
| Application | Environmental |
| Part Number |
|---|
| 110-0188031-NT-100 |
