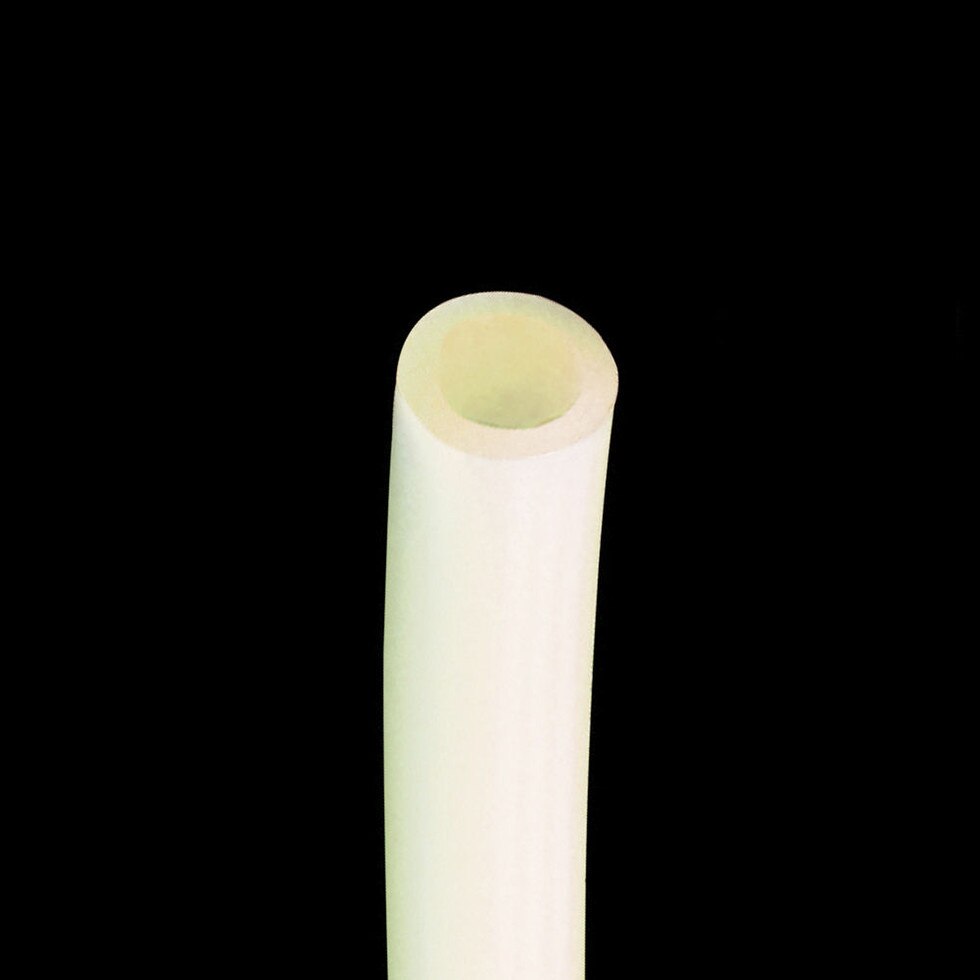

Flex, 1/4 in Heavy Wall - Series 110

Quantity	Price

SKU: 110-0250047-NT-100

Estimated Dock Date

List Price / Net Cost

Hose I.D. : 0.16 in

0.16 in

Hose O.D. : 1/4 in

1/4 in

Customer Revision

$1.11

Don't worry! Items not currently on hand in our warehouse can typically be secured and shipped to you within 5 business days. Some items require additional lead-time based on manufacturer availability. Proceed with your order of this item and we will contact you with an estimated ship date!

Available: 0

Quantity available represents our stock on hand for immediate shipment. If you require additional quantities place your order for the full amount and we will secure the additional stock you need!

110-0250047-NT-100

Note: This product is no longer available - please contact us for further assistance.

PVDF (Polyvinylidene Fluoride) is a tough engineering Fluoropolymer that offers a combination of properties beneficial for use in many critical applications requiring chemical resistance with low permeability. Commonly referred to as Kynar®*, PVDF exhibits low extractable levels, while providing high mechanical strength, excellent abrasion resistance, and good resistance to many chemicals and solvents. Parker TexLoc’s PVDF tubing is excellent for use in ultrapure water systems and ground water monitoring. PVDF Tubing also offers better chemical resistance than thermoplastics and is a cost effective alternative to PTFE tubing when extreme temperatures are not required. It is available in Flex™ (Series 110) or Super-Flex™ (Series 111) designs.

* Kynar is a registered tradename of Arkema, Inc.

Markets:
• Fluid Transfer
• Industrial
• Food and Beverage
• Utilities

Features/Benefits:
• Good chemical and corrosion resistance
• Cost effective alternative to PTFE tubing
• Excellent abrasion resistance
• Low permeability
• Low outgassing
• Super-Flex™ offers 10x the flexibility of the standard Flex™ tube

Applications:
• Fluid Handling
• Gas
• Food
• Thermal cycling
• Outdoor/extreme conditions
• Water systems
• Ground water monitoring

Certifications:
• ASTM D 3222
• FDA Compliant
• RoHS
• VW-1, UL-83

Technical Specifications:
• Working and burst pressures rated 73°F /23°C; Working pressure is reduced with rising temperature and this effect is more pronounced with Series 111
• Qualified with Compression, Compress-Align®, Metric-Compression & True Seal™ Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service

Part Number
110-0250047-NT-100

Compatible Fitting	Compress-Align®
Specifications Met	RoHS
Specifications Met	FDA
Specifications Met	UL 83
Compatible Fitting	Compression
Minimum Bend Radius	19 mm
Compatible Fitting	TrueSeal™
Media	Water
Tube Outside Diameter	0.25 inch
Media	Industrial Gases
Minimum Burst Pressure	57.4 bar
Media	Food & Beverage
Specifications Met	VW 1
Maximum Operating Pressure	14.3 bar
Length per Package	30.479 m
Size	1/4 x 0.047 inch
Maximum Operating Temperature	130 °C
Application	Environmental
Color	Natural
Tube Inside Diameter	3.96 mm
Length per Package	100 ft
Maximum Operating Temperature	265 °F
Minimum Burst Pressure	832 psi
Minimum Bend Radius	0.75 inch
Tube Inside Diameter	0.156 inch
Application	Semiconductor
Maximum Operating Pressure	208 psi
Application	Gas Transfer
Application	Food
Application	Water Systems
Minimum Operating Temperature	-62 °C
Tube Outside Diameter	6.35 mm
Division	Parflex Division
Application	Thermal Cycling
Specifications Met	ASTM D3222
Tube Material	Polyvinylidene Fluoride (PVDF)
Minimum Operating Temperature	-80 °F
Media	Chemicals
