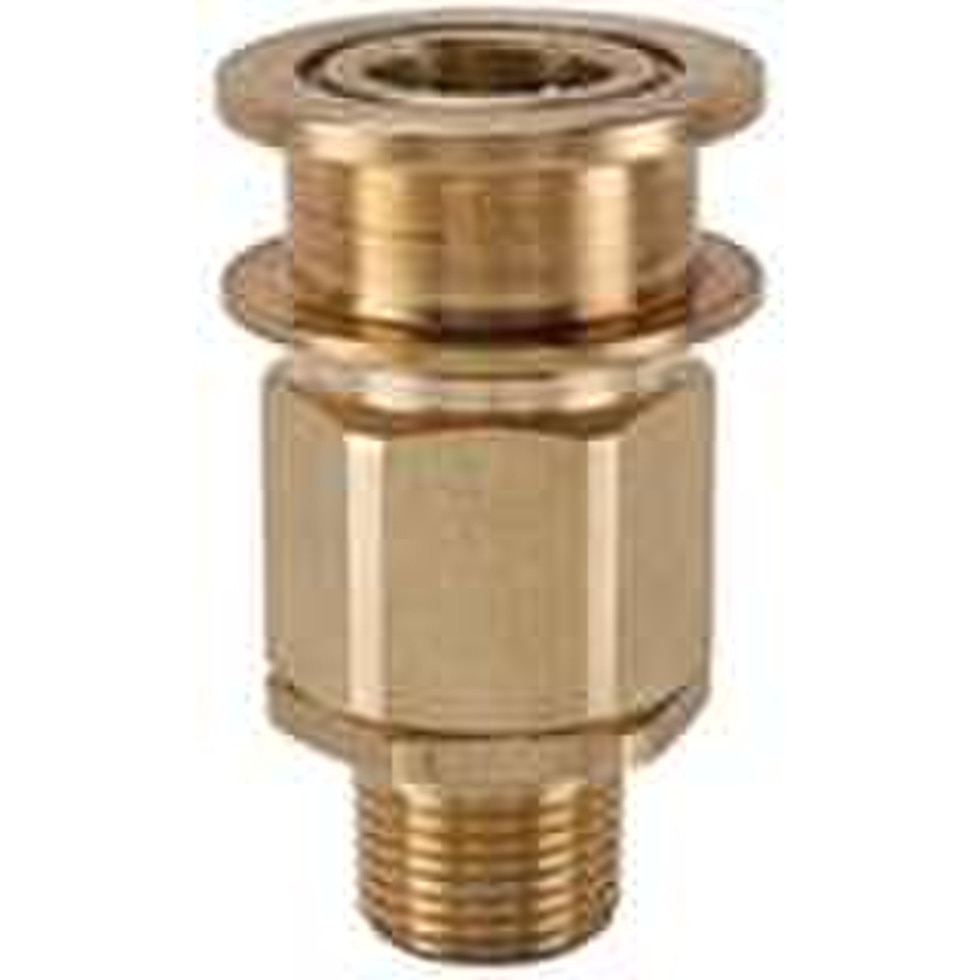

EA Series Brass Coupler with Male Thread, Valved
Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.
Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.
EA Series Couplers, (hydraulic, water, gas) vacuum up to 3,000 psi, connect with EA Series Nipples.
Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72' Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4', and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72' Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4', and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
| Valve Type | Poppet |
| Hex Size | 1.0 inch |
| Seal Material | Nitrile |
| Vacuum Pressure Rating | 29.7 inch-Hg |
| Product Type | Manual Connect |
| Division | Quick Coupling Division |
| Maximum Operating Temperature | 250 °F |
| Plating Type | na |
| Minimum Operating Temperature | -40 °F |
| Body Material | Brass |
| Application | Vacuum and medium pressure hydraulics |
| Part Number |
|---|
| BVEAC6-6M |
